Trencher Attachments for Excavators & Skid Steer
Solaris – Auger Torque Trenchers are quickly gaining a reputation for being the toughest most versatile units on the market today.
Meet the Solaris Trencher Attachments:
The laborious task of digging a trench has been transformed since the advent of the Solaris – Auger Torque Trencher Attachment. Solaris – Auger Torque’s range of trenchers are available for excavators up to 10MT in weight and cover depths of up to 5 feet and widths up to 14 inches, while spoil is piled neatly to the side of the trench by the integral auger. Using only the highest quality hydraulic motors that allow flow rates of up to 40 gpm and Solaris – Auger Torque’s planetary gearbox, means these trenchers have the reliability and power you need to ensure your trenching is carried out with ease.
-
HIGH-QUALITY MOTOR AND GEARBOX
Using only the highest quality hydraulic motors that allow flow rates of up to 40 gpm and then amplified by Solaris-Auger Torque’s own ‘bullet-proof’ planetary gearbox means that our trenchers have the reliability you need and the power to ensure your trenching is carried out with ease.
-
EPICYCLIC GEARBOX
Torque is amplified by using the unique Solaris-Auger Torque planetary gearbox. This system allows the motor’s output torque to be multiplied with extreme efficiency as well as ensuring the durability and reliability you need.
-
HOSE & ADAPTOR OPTIONS
All Trenchers are supplied as standard with high-quality hoses and adaptors.
-
MULTIPLE TEETH COMBINATIONS
Chains are available in a number of different teeth configurations for trenching in soft ground, mixed grounds, and even permafrost, allowing you to get the job done quickly.
-
ADJUSTABLE DEPTH SKID
A great feature that will make your job much easier is the precision depth control skid, which enables the operator to set the machine at up to three different trench depths.
-
RAPID CHAIN ADJUSTMENT
The length of the chain can be quickly adjusted with the removal of a screw to move the boom.
Chains are available in a number of different tooth configurations for trenching in soft ground, mixed grounds, and even permafrost allowing you to get the job done quickly. Another great feature that will make your job easier is the precision depth control skid which enables the operator to set the machine at up to three different trench depths.
All Solaris-Auger Torque attachments and equipment are warranted to be free from material, mechanical, or workmanship defects for a certain time (summarized below).
Planetary Gearbox: 72 months
Hydraulic Motors: 36 months
Other Parts and Products: 24 months
Note: The warranty is only valid if the product is attached, assembled, and used appropriately, according to the directions provided in the operator’s manuals and other instructions. The warranty period will start from the date of sale by the distributor or manufacturer.
Precision Depth Control
Another great feature that will make your job easier is the precision depth control skid which enables the operator to set the machine at up to three different trench depths.
Once level with the ground the trencher will be cutting at the optimal cutting angle whilst maintaining the correct depth. Pulling the trench is as easy as creeping the machine in reverse at a steady pace and even inexperienced operators will find working with this attachment a breeze.
Models Available:
For Mini-Excavators 2.5 – 4.5 metric tons (5,500 lbs. – 9,920 lbs.)
Trenches 12 – 24 inches deep
Cutting Width 4 – 12 inches
For Mini-Excavators 3.0 – 5.0 metric tons (6,600 lbs. – 11,000 lbs.)
Trenches 24 – 36 inches deep
Cutting Width 4 –12 inches
For Mini-Excavators 3.0 – 5.0 metric tons (6,600 lbs. – 11,000 lbs.)
Trenches 30 – 48 inches deep
Cutting Width 4 –8 inches
For Excavators 5.0 –7.5 metric tons (11,000 lbs. – 16,500 lbs.)
Trenches 24 – 36 inches deep
Cutting Width 6 -14 inches
For Excavators 5.0 –7.5 metric tons (11,000 lbs. – 16,500 lbs.)
Trenches 30 – 48 inches deep
Cutting Width 6 -12 inche
For Excavators 5.0 –10 metric tons (11,000 lbs. – 22,000 lbs.)
Trenches 39 – 60 inches deep
Cutting Width 6 -8 inches

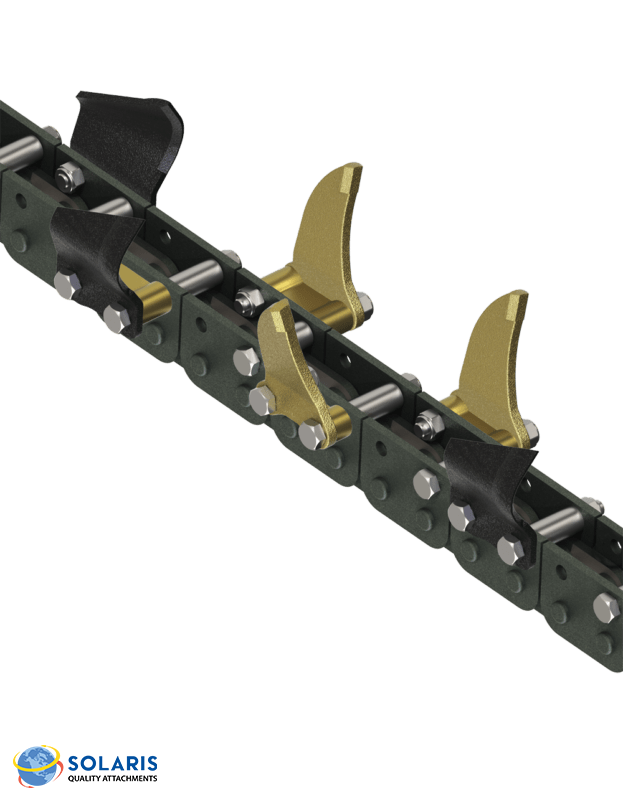

Combo Chain – cup & rock tooth

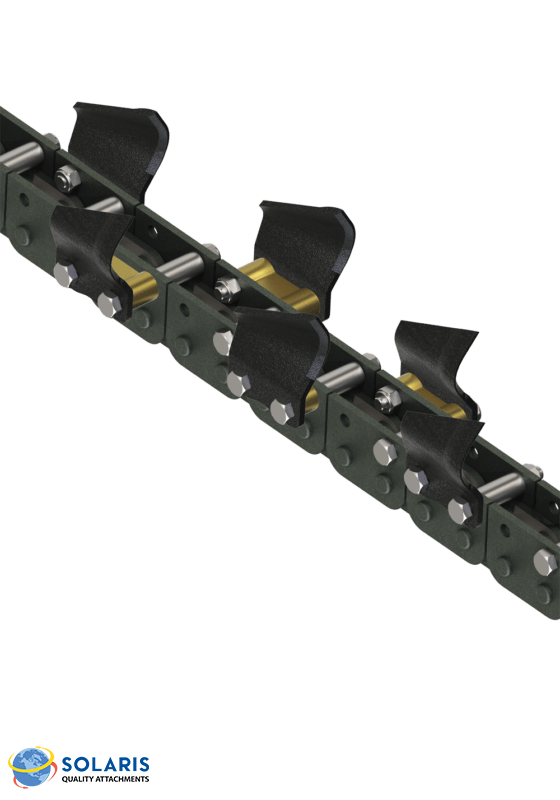

Earth Chain – 100% cup tooth

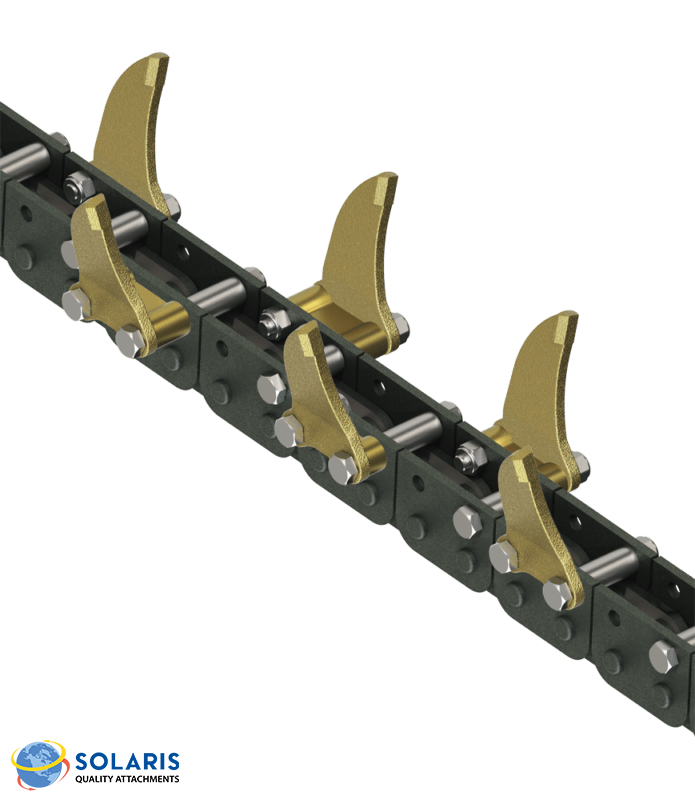

Rock Chain – 100% Tungsten tooth
